How Much to Shorten 2″ Pipe for Long Turn Elbow

➡️Correctly calculating how much to shorten a 2-inch pipe to fit a long radius elbow is crucial in pipe installation or prefabrication. It affects not only alignment accuracy but also medium flow efficiency and weld quality. Based on the ASME B16.9 standard, this article provides precise shortening data and engineering experience.

1. Core Shortening Amount: Based on Center-to-Face Dimension

☑️For a 2-inch (DN50) 90° long radius elbow, the standard center-to-face dimension is 3 inches (76.2 mm). This means: when welding the elbow to a straight pipe end, you must subtract 3 inches from the theoretical pipe length.

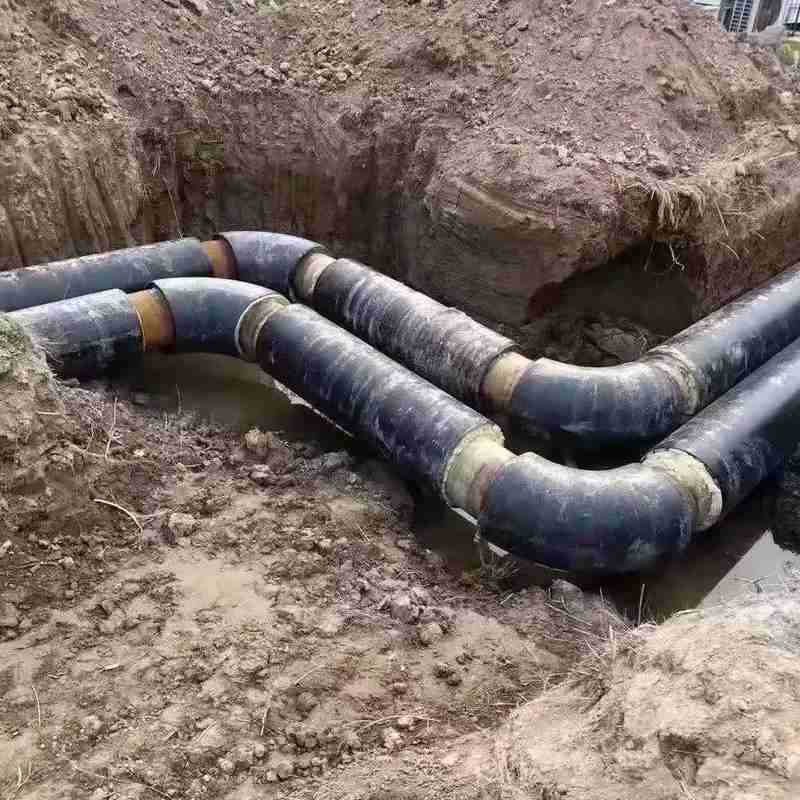

☑️For a 45° long radius elbow, the center-to-face dimension is approximately 1.25 inches (31.8 mm), so the shortening amount is adjusted to 1.25 inches. Compared to short radius elbows, long radius elbows (bend radius = 1.5 × nominal diameter) significantly reduce fluid resistance and pressure loss, making them more popular in petrochemical and heating systems.

2. Considering Weld Gap and Assembly Tolerance

☑️In actual welding operations, a weld gap (generally about 1/8 inch or 3 mm) must be预留. Therefore, many engineers use a correction of “theoretical shortening amount minus gap”. However, be careful not to deduct twice. The standard practice is: cut based on the center-to-face dimension, then use a pipe aligner during fit‑up to ensure the root gap; this gap is already included in the overall dimensions.

☑️For butt‑weld connections, the precise pipe take-off for long radius elbow is 3 inches (excluding extra gap), while the 2 inch pipe fitting allowance is recommended to be 3‑1/8 inches (79.4 mm) to leave grinding allowance.

3. Engineering Experience and Quality Verification

☑️Based on years of pipe prefabrication experience, when using long radius elbows you should also check the pipe end bevel angle (typically 30°–37.5°) and the land thickness (1.6 mm ±0.8 mm). These parameters, combined with the correct shortening amount, avoid welding misalignment or stress concentration. It is recommended to perform a trial fit‑up with the actual elbow before cutting, recording the actual fit length, especially for batch prefabrication.

📝Summary

♂️For 2‑inch pipe with a 90° long radius elbow, the exact shortening amount is 3 inches; for a 45° elbow it is 1.25 inches. Mastering the two key data points—pipe take-off for long radius elbow and center-to-face dimension 2 inch elbow—enables efficient and accurate cutting.
