Stainless 90 Degree Elbow Hose: A Versatile Connection Solution for Residential Plumbing and Industrial Piping

▶️In both domestic water supply and industrial fluid conveyance systems, redirecting pipeline paths has always been a design challenge. The stainless 90 degree elbow hose, with its pre-formed right-angle turn structure, offers a simple and efficient solution for tight spaces and complex piping layouts.

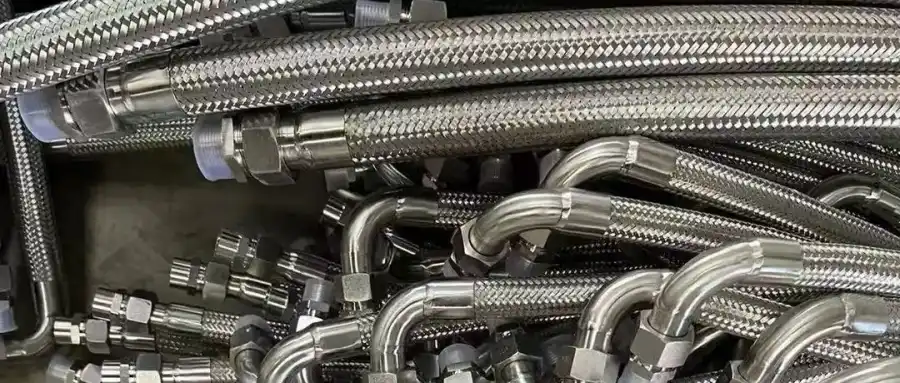

What is a stainless 90 degree elbow hose?

✅This type of hose is typically composed of an inner corrugated stainless steel tube and an outer high-strength stainless steel braided layer (braided stainless steel hose). The braided construction not only provides abrasion and corrosion protection but also enables the hose to withstand relatively high working pressures.

✅Taking a common 304 stainless steel braided hose as an example, its operating temperature range covers -40°C to +100°C, making it suitable for alternating hot and cold water supply scenarios. For more demanding corrosive media environments, the 316 stainless steel flexible hose connector, with its molybdenum-added alloy composition, offers superior resistance to chloride-induced corrosion.

Core applications in residential and commercial sanitary ware

✅In home and commercial bathroom settings, space constraints are often the biggest installation obstacle. The 90 degree elbow water supply hose is designed precisely to overcome this—the pre-formed 90° elbow allows the hose to run close to walls or equipment edges, avoiding stress damage caused by sharp bending of the hose body.

Typical applications include:

• Water heater inlet connection: The elbow end can directly connect to the side inlet of the water heater, eliminating the need for additional elbow fittings.

• Toilet fill valve: In the narrow space behind the toilet, the 90° elbow allows the hose to connect to the angle stop valve with a natural curve.

• Washing machine supply hose: A braided hose with a 90° elbow enables the washing machine to sit flush against the wall, saving approximately 3 inches (about 7.6 cm) of clearance space. Some products, through optimized internal diameter design, can achieve up to 50% faster fill rates.

• Kitchen sink faucet: Enables flexible routing within the confined space under the cabinet.

✅In terms of material standards, 304/316 stainless steel complying with NSF/ANSI 372 ensures no lead leaching, making it suitable for potable water systems.

Extended applications in industrial fields

The stainless steel 90 degree elbow hose also plays a critical role in industrial scenarios. In chemical, pharmaceutical, food and beverage, and other industries, 316L stainless steel elbow hoses are widely used for conveying corrosive media, high-pressure fluids, and high-temperature steam. Typical industrial applications include:

• Pneumatic tools and compressor lines: Operating pressures up to 250 psi (approx. 17.2 bar).

• Chemical transfer and water treatment systems: Especially suitable for piping connections handling corrosive chemicals such as sodium hypochlorite.

• Food and beverage processing: Hygienic designs compliant with RoHS standards, facilitating quick disassembly and cleaning.

• Marine and shipboard piping: Salt-spray corrosion resistance makes it an ideal choice for marine environments.

Selection and installation recommendations

 ☑️When selecting a stainless steel braided hose with 90 degree elbow, attention should be paid to the following key parameters: hose inner diameter (common sizes include 1/2 inch, 3/4 inch, etc.), fitting types (e.g., MNPT threaded connections or quick-connect couplings), and working pressure and temperature ranges. During installation, avoid excessive bending of the hose body itself, and periodically check for loosening or leakage at the connections.

 ☑️Additionally, it is advisable to prioritize stainless steel fittings that comply with the ASTM A774/A774M standard, which covers specifications for austenitic stainless steel fittings suitable for low-temperature and moderate-temperature general corrosive service.

 ☑️Whether connecting a water heater at home or conveying industrial media in a factory workshop, the stainless 90 degree elbow hose stands as an indispensable connection component in modern piping systems, delivering reliable performance and flexible installation.
