In pipeline systems, elbows are used to change the direction of the medium flow, among which the long radius elbow is one of the most critical types.

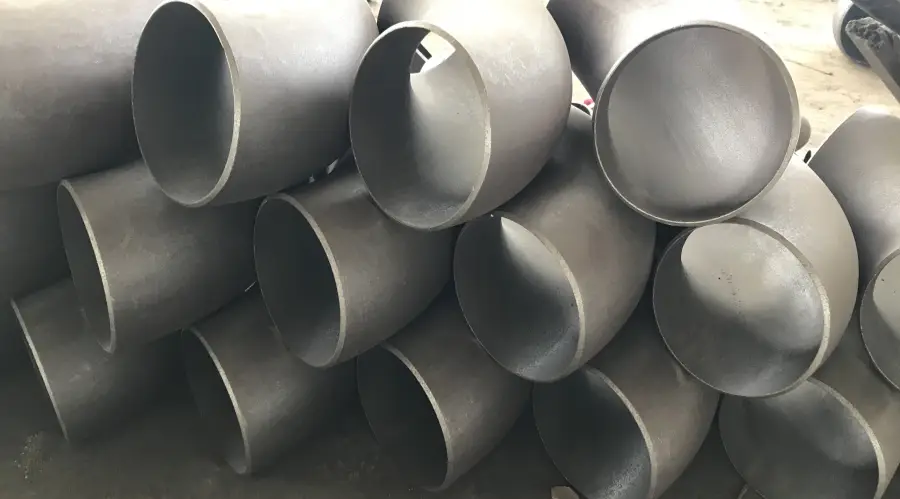

✅Long Radius Elbow: The bending radius of the elbow centerline is 1.5 times the nominal diameter of the pipe, i.e., R = 1.5D. Compared with short radius elbows (R = 1.0D), long radius elbows provide a smoother flow path, significantly reducing turbulence and pressure loss.

✅The radius of long radius elbow directly affects fluid dynamic performance. The conventional 1.5D design already satisfies most industrial scenarios, but in high-wear, high-viscosity, or pneumatic conveying systems, engineers often select an extra long radius elbow (R ≥ 3D, even up to 5D).
📌For example, in coal slurry pipelines, using an ultra-long radius elbow with R=3D can reduce the impact angle of solid particles against the pipe wall to less than 10°, lowering the wall erosion rate by more than 60% compared to short radius elbows.

📌Tests conducted in 2022 by the international pipeline journal Pipeline Engineering Insights show that the pressure loss of an extra long radius elbow at the same flow velocity is only about half that of a conventional short radius elbow.

✅For pipelines requiring gradual directional changes, the 45° long radius elbow is an important component. Its bending radius also remains 1.5D, and the center-to-face dimension follows ASME B16.9 as 0.75 × NPS (in inches).
Taking an NPS 4 (DN100) 45° long radius elbow as an example, the center-to-face distance is 3 inches (76 mm), and the wall thickness reduction is controlled within 12.5% of the nominal wall thickness.

✅When the pipe diameter exceeds DN150 and the medium flow velocity is greater than 3 m/s, prioritizing the long radius elbow pipe 45 degree can effectively avoid vortex and vibration while extending pipeline life.

✅The trade-off between short radius elbow and long radius elbow is essentially a balance between space and performance. Short radius elbows have a compact structure, suitable for skid-mounted equipment or compact pipe racks; however, due to the gentler curvature of long radius elbows, the impact frequency of particles or bubbles in the medium against the outer arc of the elbow is significantly reduced.

✔️AIFN once provided a complete set of long radius elbows (including 45° and 90°) for offshore oil and gas platforms in China. In random inspections after 15 years of operation, the maximum wear depth on the elbow back was found to be less than 1 mm, whereas short radius elbows used earlier on the same platform experienced perforation in only 8 years—this verifies the reliability advantage of long radius design.

✔️In addition, extra long radius elbows are also common in catalyst regeneration lines, food-grade powder conveying, and ultrapure water systems.
📌For example, in high-purity water distribution networks in semiconductor fabs, elbows with R=4D are used to avoid particle shedding caused by local turbulence. Manufacturing such elbows requires cold push or hot push processes, with strict control of inner and outer arc wall thickness in accordance with MSS SP-43.

✔️Understanding the radius definition, angle variations, and comparison with short radius elbows of long radius elbows is the foundation for optimizing pipeline hydraulic design.

📝As a professional pipe fitting supplier, AIFN offers elbow products ranging from 1.5D to 5D, covering carbon steel, stainless steel, and alloy materials. All products undergo hydrostatic testing and full dimensional inspection, ensuring compliance with international standards such as ASME B16.9 and EN 10253-2.
