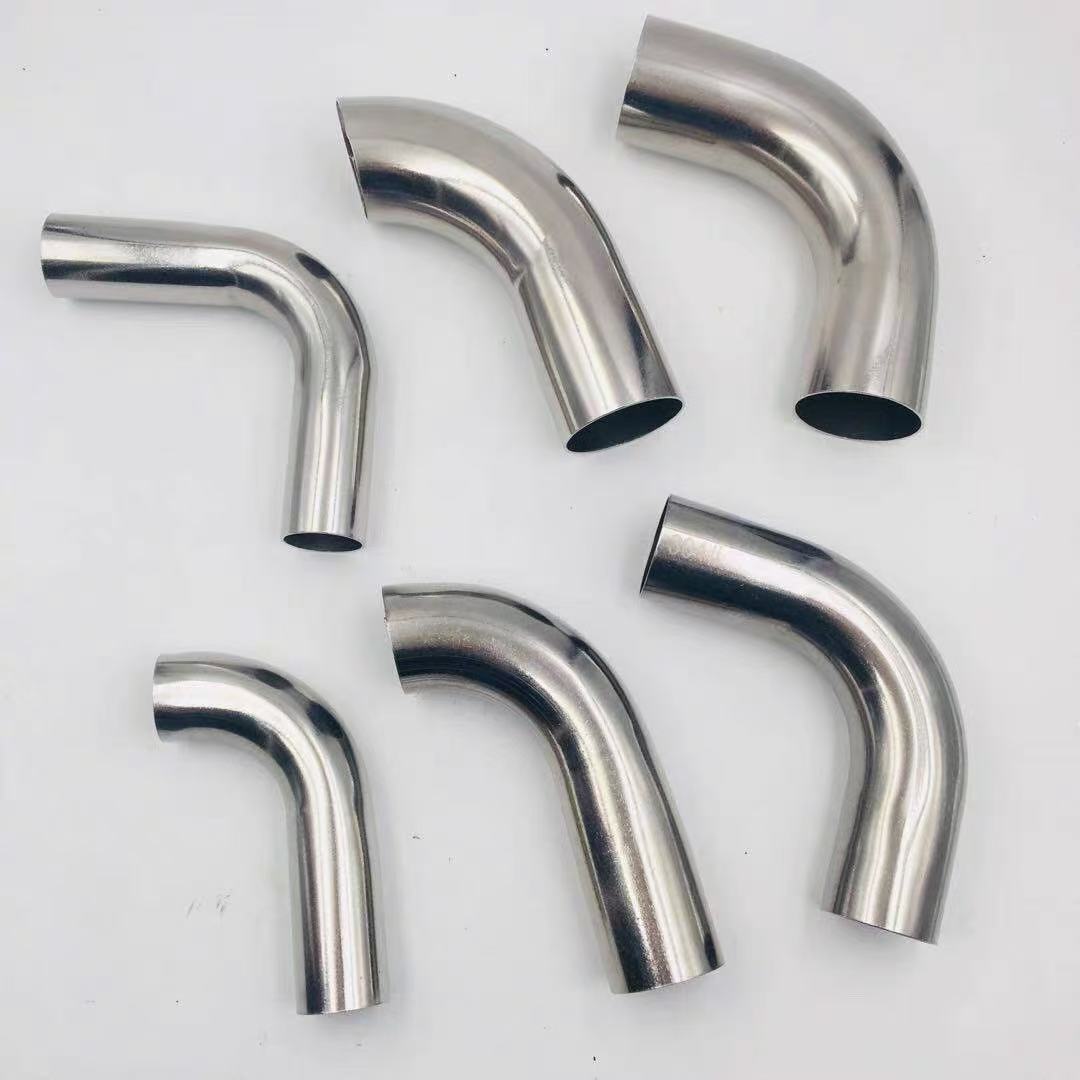

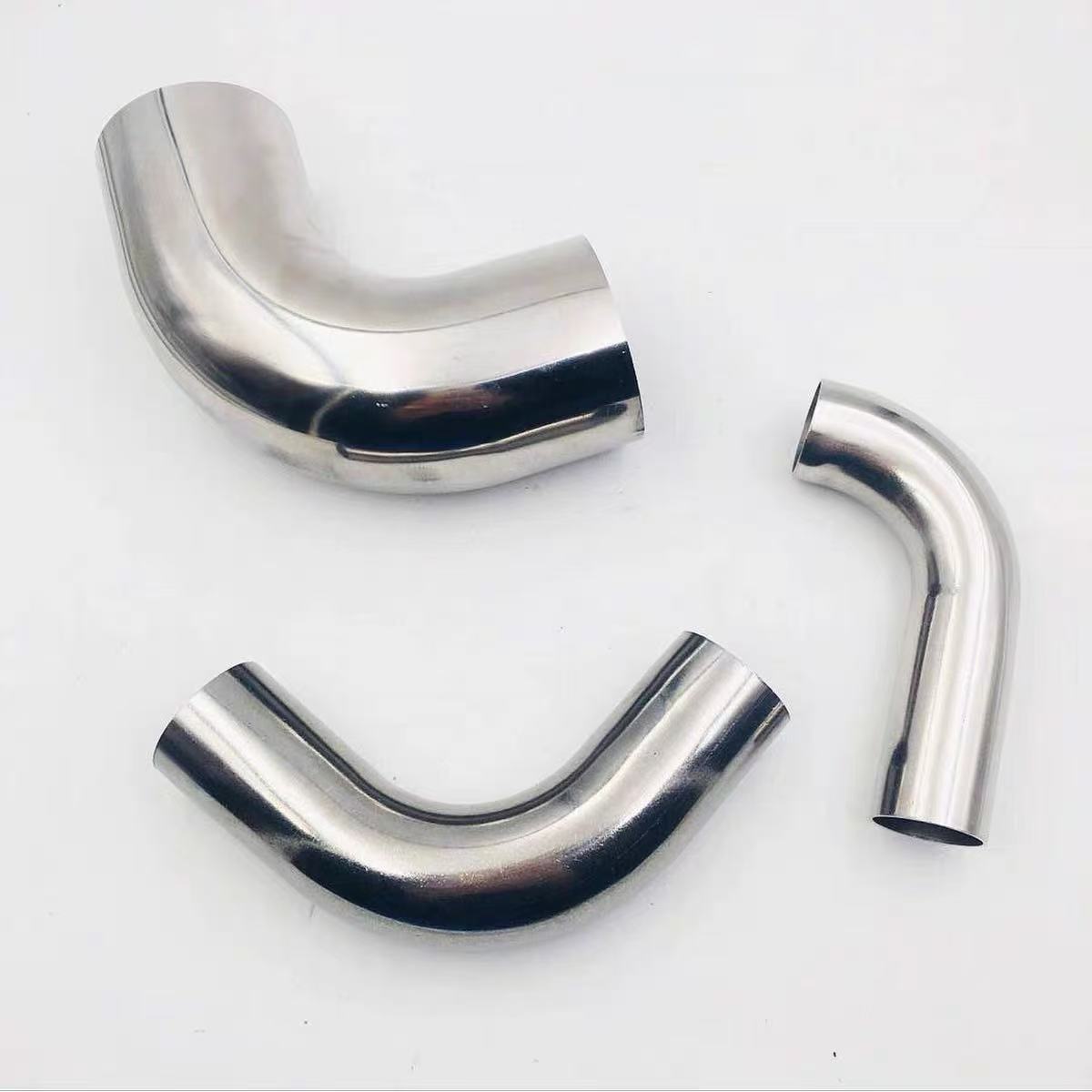

1/2 Inch 90 Degree Steel Elbow | Threaded & Welded Fittings
Discover durable 1/2 inch 90 degree steel elbows for plumbing & industrial pipes. Available in threaded & welded types. High pressure rating. Fast shipping.
Description
In complex industrial pipeline networks, every fluid directional change faces the challenges of pressure loss and erosion risk. As a commonly used connecting component in piping systems, the 1/2 inch 90 degree steel elbow serves as a critical node for ensuring long-term stable operation and reducing maintenance costs. This small-bore elbow, with its precise 90° turning capability, provides engineers with an efficient piping solution.
Material and Pressure Ratings: From 316L to Special Alloys
Selecting the correct material is the foundation for ensuring the full-lifecycle safety of a piping system. For conveying corrosive media (such as chemical solvents, seawater) or for applications with extremely high cleanliness requirements such as the food and pharmaceutical industries, the threaded 316 stainless steel elbow is the preferred choice. 316 stainless steel, due to its molybdenum (Mo) addition, offers far superior resistance to chloride pitting and crevice corrosion than conventional 304 material. For high-temperature steam or high-pressure hydraulic systems, we recommend the 1/2″ stainless steel 90 degree elbow forged to ASTM A182 standard, whose dense grain structure effectively withstands high-pressure impacts.
| Parameter | Specification / Options | Remarks |
|---|---|---|
| Nominal bore | 1/2 inch (DN15) | Suitable for small-flow precision piping |
| Connection type | Threaded (NPT/BSPT) / Socket weld / Butt weld | Threaded facilitates on-site assembly/disassembly; welded type suitable for high-pressure permanent connections |
| Body material | ASTM A182 F304 / F316 / F316L | 316L has lower carbon content, offering better intergranular corrosion resistance after welding |
| Pressure rating | Class 150 / 300 / 600 / 2000 / 3000 | Depends on material and construction |
| Bend radius | Long radius (LR) / Short radius (SR) | Long radius (R=1.5D) gives lower pressure loss; short radius (R=1.0D) saves more space |
| Manufacturing standard | ASME B16.9 / B16.11 / MSS SP-79 | Strictly follows internationally accepted standards to ensure interchangeability |
Application Scenarios: Real-World Validation in Building Water Supply & Drainage and Industrial Pipelines
For the 1/2 inch stainless steel elbow, its application scope covers everything from commercial building domestic water supply to light industrial gas transmission.
Taking the Vanke Holiday Scenery residential complex in Minhang District, Shanghai (Vanke Real Estate) as an example, this project fully adopted our company’s 1/2″ stainless steel 90 degree elbow in the retrofit of the central hot water supply system for high-rise residential buildings. Because the community has strict anti-corrosion requirements for water supply pipe materials, and the pipe shafts are extremely narrow, ordinary carbon steel elbows could not meet the 10-year maintenance-free commitment.
Our stainless steel elbows, with their precise thread accuracy and uniform wall thickness, achieved zero leakage during on-site installation, effectively solving the interface fatigue problem caused by thermal expansion and contraction of the pipes, and received high recognition from the project team.
Dimensional Standards and Installation Specifications
Engineering professionals familiar with stainless steel elbow 90 degree sizes know that although both are 90° elbows, long radius (LR) and short radius (SR) have strictly different installation dimensions. The center-to-end dimension of a 1/2-inch long radius elbow is typically 38mm (R=1.5D), while that of the short radius is 25mm (R=1.0D).
When installing the 1/2 inch 90 degree steel elbow, for threaded connections, it is recommended to use PTFE thread seal tape or dedicated thread sealant, and pay attention to the tightening torque to avoid parent material cracking due to over-tightening; for welded connections, ensure that bevel preparation complies with the Procedure Qualification Record (PQR) requirements.
Selection Recommendations and Industry Value
To ensure a piping system that is both economical and reliable, it is recommended that purchasers make comprehensive selections based on actual temperature, pressure, and media corrosivity. If you are looking for a 1/2 inch 90 degree steel elbow that balances high performance and cost-effectiveness, we offer full traceability from raw forging to finished product inspection, and each batch can be supplied with a material certificate (EN 10204 3.1). Choosing the right fitting means choosing long-term, stable production operation assurance.
