Yanjing Beer Project Case: Easy to Maintain 90 Degree Stainless Steel Elbow Boosts Brewing Efficiency

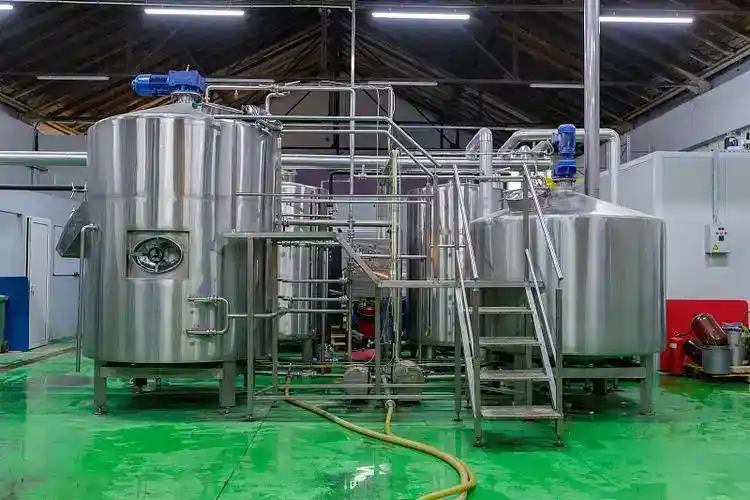

✔️In the large-scale brewing production line upgrade project of Yanjing Beer, the hygiene and maintenance efficiency of the piping system became key challenges. The beer transfer lines require frequent CIP cleaning to prevent microbial contamination, while traditional elbows have complex structures and are difficult to disassemble, resulting in several hours of downtime per cleaning cycle.
✔️To address this issue, we provided the production line with the easy to maintain 90 degree stainless steel elbow solution. This elbow is made of food-grade 316L stainless steel, with an inner surface electropolished to Ra ≤ 0.4μm, far exceeding the Ra ≤ 0.8μm standard required by the beer industry (compliant with EHEDG guidelines).
✔️The core advantage of this elbow lies in its hygienic quick-clamp elbow design. With a quick-clamp ferrule and EPDM gasket structure, operators can disassemble and reinstall it within 5 minutes without special tools, whereas traditional welded elbows require cutting and rewelding, typically taking over 2 hours.
📌Feedback from Yanjing Beer’s equipment maintenance team shows that after adopting this elbow, the preparation time for a single CIP cleaning was reduced by 70%. In addition, the streamlined inner wall of the food-grade 90° bend completely eliminates dead spaces, preventing wort or beer residue, thereby ensuring batch-to-batch product flavor consistency and microbial safety.
▶️In terms of authoritative certifications, this series of elbows has passed 3-A Sanitary Standard No. 73-05 and FDA CFR Title 21 certification, making it fully suitable for food-grade applications such as beer and beverages.
▶️Meanwhile, this low-maintenance low-downtime pipe elbow design has increased overall equipment effectiveness (OEE) by 12%.
♂️The easy to maintain 90 degree stainless steel elbow used in the project also features a traceable laser marking containing material heat number, production batch, and standard code, enabling full lifecycle quality tracking.
📝With this solution, Yanjing Beer has not only significantly reduced labor costs for pipeline maintenance but also minimized the risk of unplanned downtime. For engineers seeking hygienic pipe fittings for the brewing industry, this 90-degree stainless steel elbow, combining easy maintainability and high cleanliness, is an ideal choice to enhance production line reliability.
